Better Coverage and Speed with Wi-Fi 6
Deploy Anywhere, Manage Centrally, Turnkey or Custom Captive Portals, Enterprise-Grade Fast Roaming, Seamless Peplink SD-WAN Integration.
Manage Centrally, No Extra Hardware Needed
Each AP One AX comes equipped with InControl central management. View the health and data usage of your network from any web browser. Centrally manage your network’s SSID and radio settings from a single pane of glass. Use the searchable event log to quickly diagnose your entire network.
Seamless Peplink SD-WAN Integration
The AP One AX works seamlessly with other services in the Peplink ecosystem, providing unique network capabilities, unmatched network flexibility and ease of use.
1. InControl Central Management
Monitor network health on a single dashboard. Push configuration proles on multiple devices at once. Remotely access the Web Admin of any device.
2. Balance/MAX/FusionHub
Provides unbreakable connectivity by
combining multiple WANs. Works with InControl to centralize VLAN, firewall, and outbound policy.
3. SD-Switch
Works with InControl to remotely configure and activate PoE ports. Monitor power consumption.
4. AP One
Works with InControl to centralize SSIDs, radio settings, and deliver captive portals.
Simply Better Wi-Fi
Wi-Fi 6: Faster, Better
This technology is 45% faster than Wi-Fi 5, has 4x more device capacity, and consumes less power for connected devices.
Enterprise-Grade Fast Roaming
This device supports 802.11k, v, and r, providing users with a more seamless roaming experience between access points.

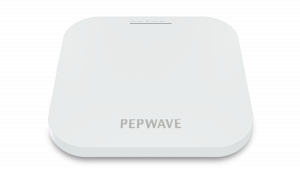

Product Overview
| Product Code | APO-AX |
| Ethernet Port | 1x 2.5 Multigigabit Ethernet |
| Wi-Fi Standard | 1x 2.4Ghz 802.11b/g/n/ax 1x 5Ghz 802.11a/n/ac/ax |
| Data Rates | 4X4 MU-MIMO 2.4 GHz: up to 1148 Mbps 5 GHz: up to 2400 Mbps |
| Channel Width | 20/40/80 MHz |
| Recommended Concurrent Users per Radio |
256 |
| SSID Per Radio | 16 |
| Transmit Power | 2412 – 2472 MHz: up to 17dBm 5180 – 5825 MHz: up to 17dBm |
| Included Antenna | Built-in Omni Antenna Antenna gain: 2.7 – 5dBi for 2.4GHz, 3.8 – 5.6dBi for 5GHz |
| Enclosure | Plenum-rated, Indoor Plastic |
| Dimensions | 8.1 x 8.1 x 1.3 inches 205 x 205 x 32 mm |
| Weight | 1.73 pounds 785 grams |
| Power Input | DC Jack: 12V DC AC Adapter: AC Input 100V − 240V, DC Output 12V, 3A* 802.3at PoE # |
| Power Consumption | 24W (max.) |
| Operating Temperature | 32° – 104°F 0° – 40°C |
| Certifications | FCC, CE, RoHS |
| Warranty | 1 Year Limited Warranty |
* Optional feature.
#PoE Injector is available separately.
Deep Dive
| Network | Bridge Mode Router (NAT) Mode Support for PPPoE, Static IP, DHCP Management VLAN Spanning Tree Protocol |
| Radio | Multiple SSID Auto Channel Selection Transmit Power Adjustment Neighbor AP Detection |
| AP Security | Open WPA/WPA2/WPA3-Personal WPA/WPA2-Enterprise |
| Device Management | Web Administrative Interface InControl Cloud Management Peplink AP Controller SNMP v1, v2c and v3 |
| Client Management | Per SSID VLAN with QoS (802.1p/802.1q) Bandwidth Control MAC Address Filtering Layer 2 Client Isolation Limit on Max. Number of Client Per Client VLAN with RADIUS VLAN with VLAN Pool Bandwidth Control Multicast Filter IGMP Snooping/Multicast Enhancement |
| Captive Portal | by InControl |
Add-on Feature
| Product Code | Description |
| ACW-107 | 802.3af/at PoE Injector, compatible with MAX Hotspot and AP One AX |
| ACW-602 | 1x12V3A Power Supply, compatiable with MAX HD2 and AP One AX |
Ordering Information
| PRODUCT CODE | NAME | DESCRIPTION |
|---|---|---|
| APO-AX | AP One AX | 4×4 MIMO Wi-Fi 6 AP for Business, manageable by InControl 2. Simultaneous Dual-Band 802.11ax/ac/b/g/n |
